Overview

A new standard in laboratory shaking

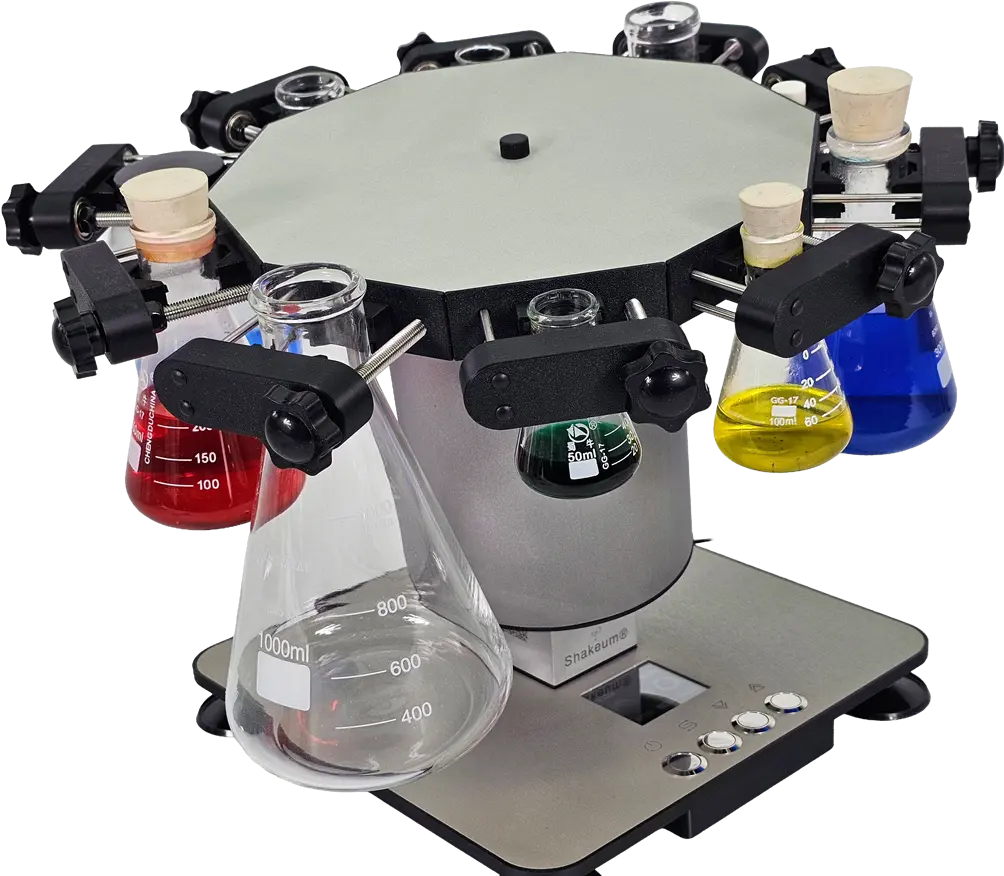

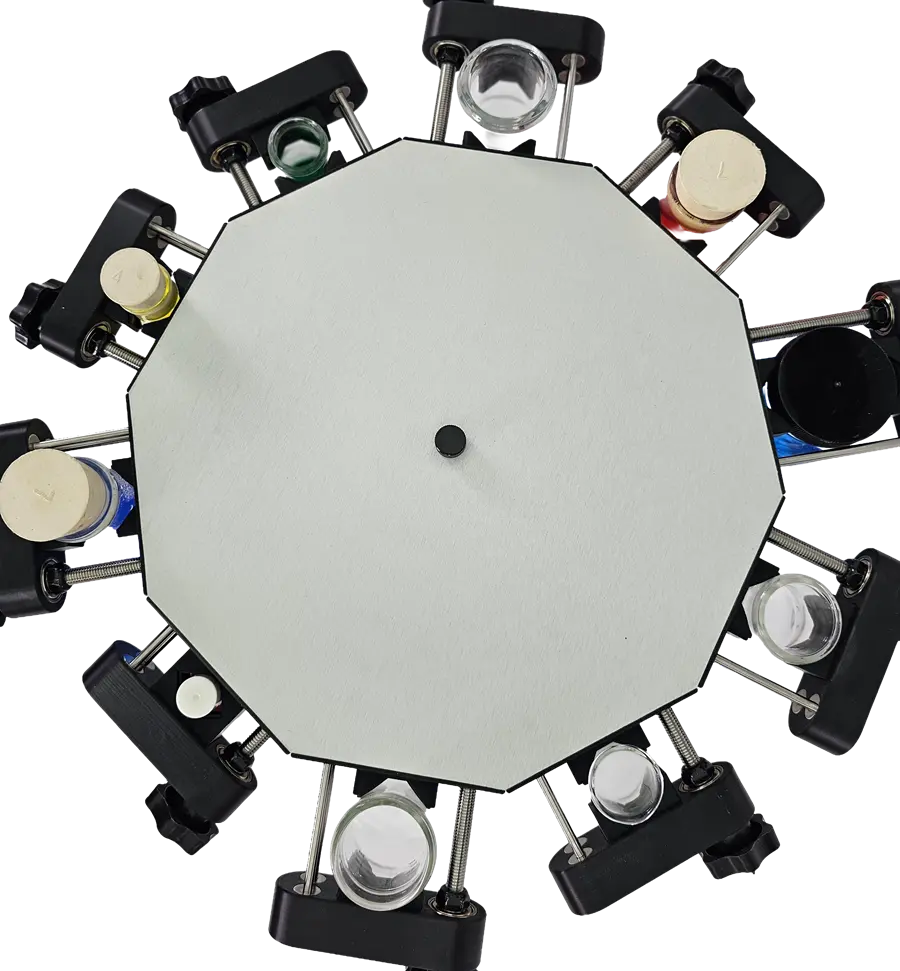

Top view of shaker with multiple colorful flasks secured in clamps

Universal Clamp System

The patent-pending clamping mechanism accepts any bottle with a neck diameter of 17–55 mm (0.67–2.15 in), eliminating the need for format-specific holders. Compatible with both glass and plastic vessels.

17–55 mmneck diameter range

8-pointgrip design

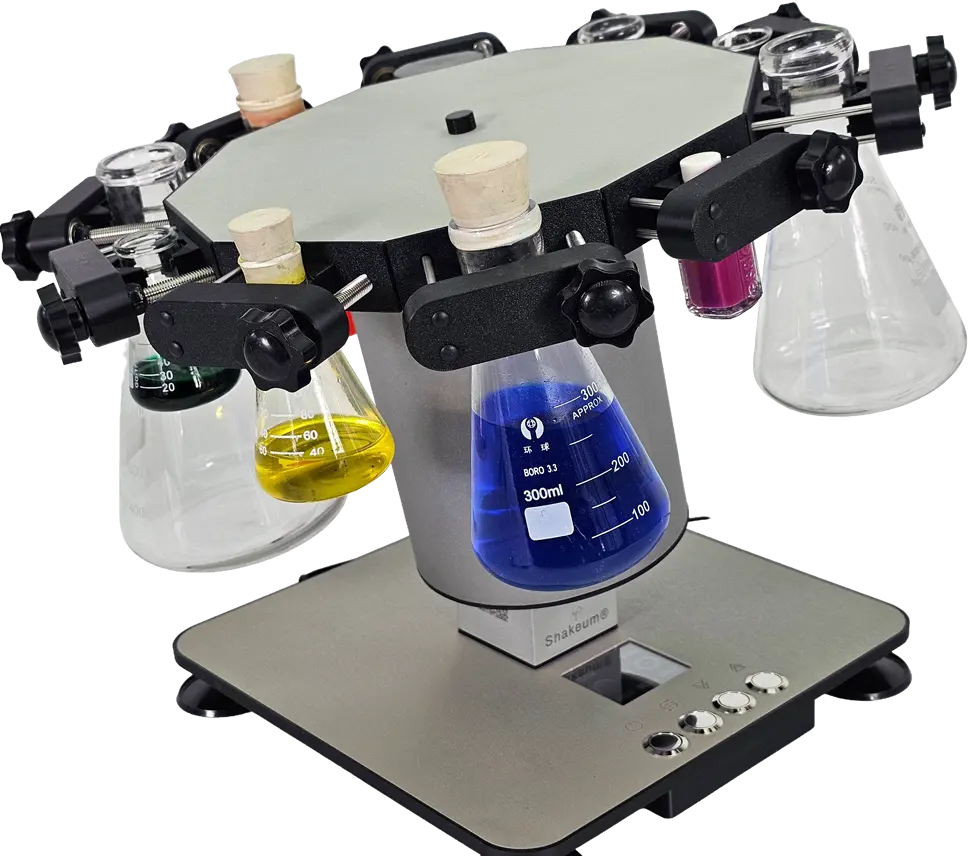

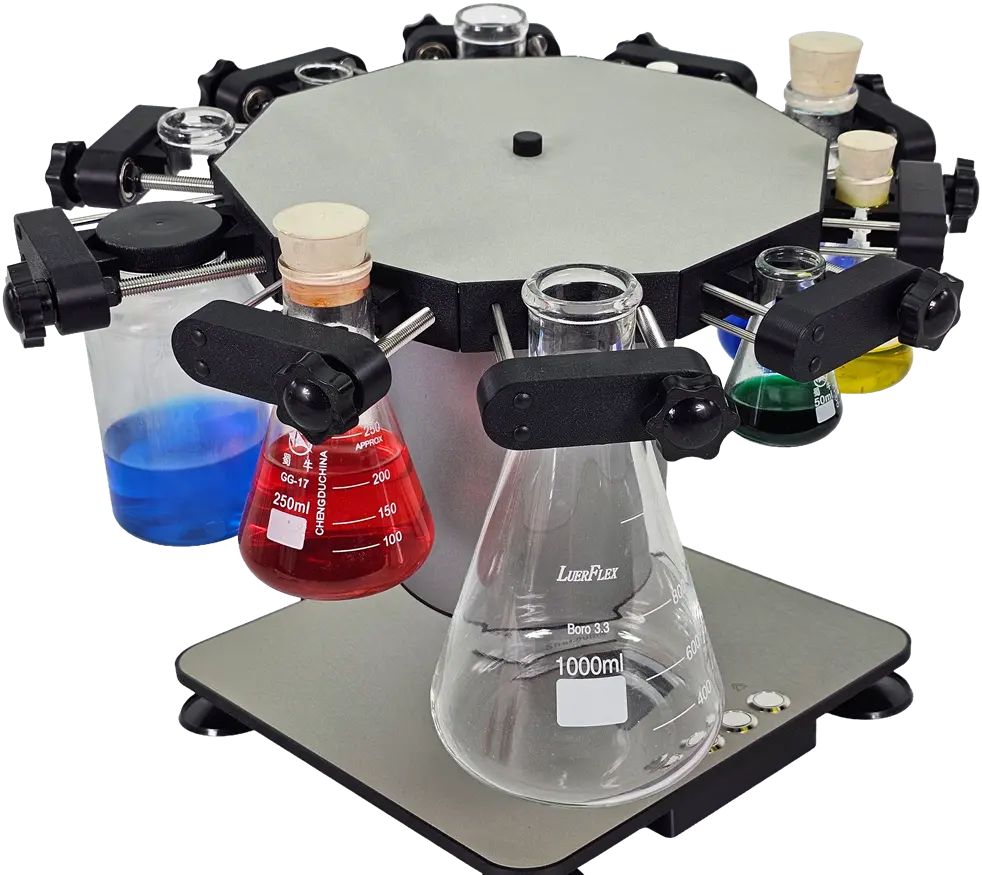

Side view showing Shakeum controls and flasks in motion

Patent-Pending Design

Engineered grip. Zero compromises.

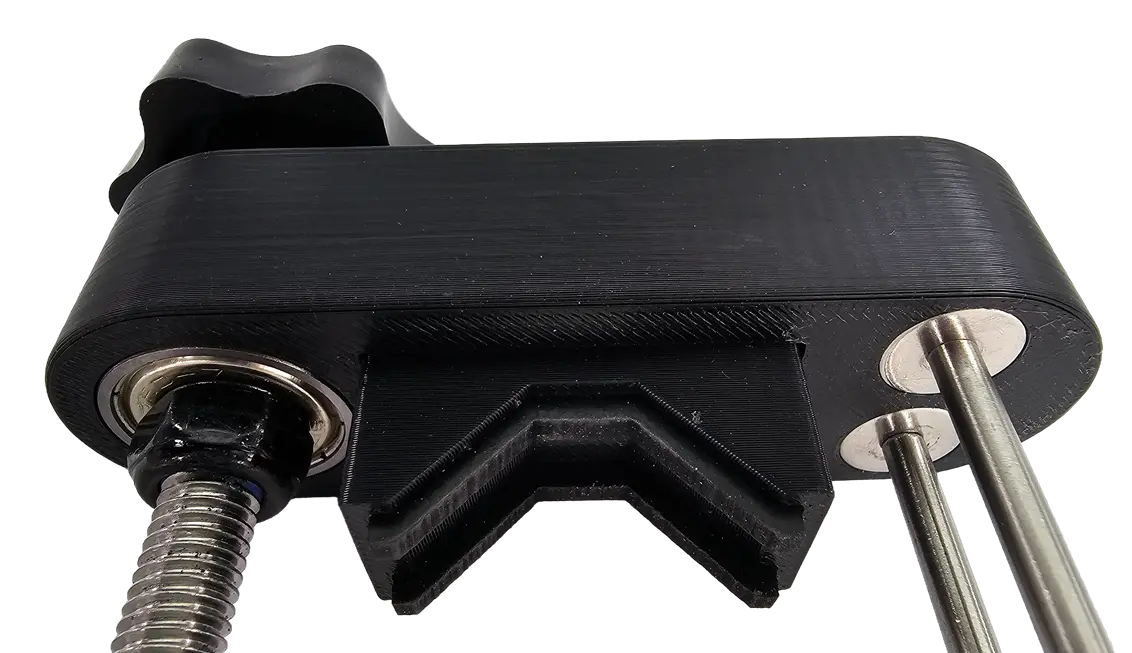

Dynamic clamp part

Close-up of universal clamp mechanism showing rod and screw assembly

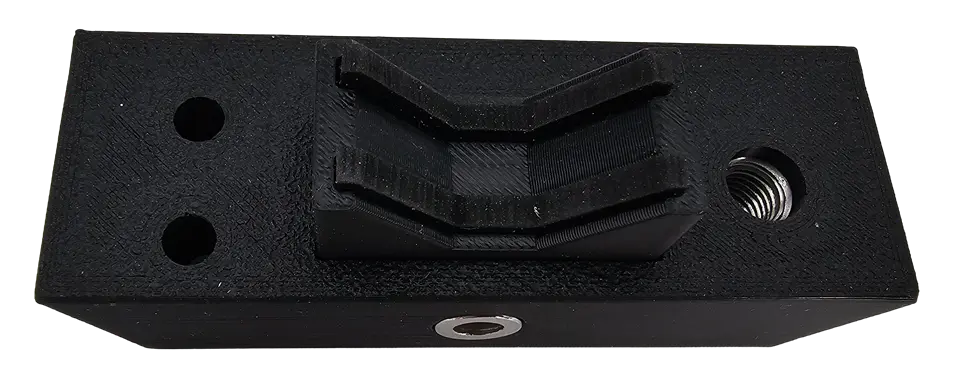

Static clamp part

Detail view of grip channel geometry on clamp body

8-point grip design

Nitrile rubber plates distribute pressure evenly across all contact points, maintaining a secure hold under continuous motion and wet laboratory conditions.

Universal compatibility

Fits any bottle or flask with a neck from 17 to 55 mm in diameter. One clamp system replaces an entire drawer of format-specific holders.

Glass and plastic vessels

The rubber-padded grip is safe for both glass and plastic laboratory ware without marking or stressing the vessel neck.

Precision-adjusted clamping

Threaded rod adjustment allows fine-tuned clamping force for different vessel sizes and wall thicknesses.

Engineering

Built for real lab conditions

❋

Multi-axis (3D) motion

More dynamic mixing than traditional orbital shakers. True three-dimensional movement improves sample homogeneity for demanding protocols.

↻

Adjustable RPM & direction

Full control over rotation speed and direction to match any protocol requirement precisely.

⇄

Adjustable amplitude

Manual control of shaking intensity — from gentle mixing to aggressive agitation depending on your application.

◷

Timed + continuous modes

30-minute default timer with continuous mode for hands-free walk-away workflow integration.

⚡

Efficient & quiet

12V DC at ~10W consumption. 60–70 dB noise level keeps your lab environment workable.

✓

Direct-from-developer

Customization requests and technical discussions welcome. Not a commodity product — a precision instrument.

Motion Control

Two ways to control your shake

Electronic controls handle your day-to-day protocol adjustments. Z-axis amplitude is set once mechanically — giving you a locked, drift-free setting for the entire run.

⎙

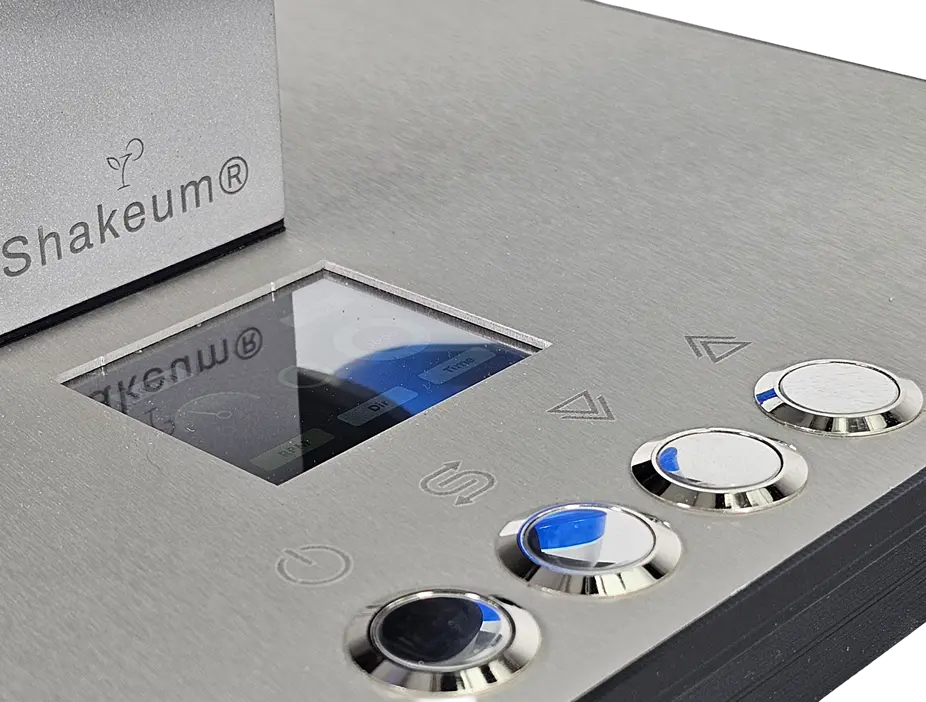

Electronic Controls

ESP32 · Adjusted via buttons

RPM Adjustable speed — dial in the rotation rate your protocol requires

Direction Clockwise or counter-clockwise, switchable at any time

Run time Timed mode (~30 min default) or continuous — walk away and let it run

⚙

Z-Axis Amplitude

Mechanical · One-time pre-run setup

Range 0 to 80 mm of vertical travel along the Z axis

Setup time ~5–10 minutes using standard tools, set once before your protocol

Recommended 5–80 mm for active mixing; below 5 mm produces vibration only

Technical Specifications

By the numbers

Power supply12V DC

Consumption~10W

Unit weight~22 lb (10 kg)

Noise level60–70 dB

Operation modesTimed + Continuous

Default timer~30 minutes

Clamp range17–55 mm neck diameter

Vessel typesGlass & Plastic

Motion typeMulti-axis (3D)

Z-axis amplitude0–80 mm (mechanical)

Grip points8-point Nitrile rubber

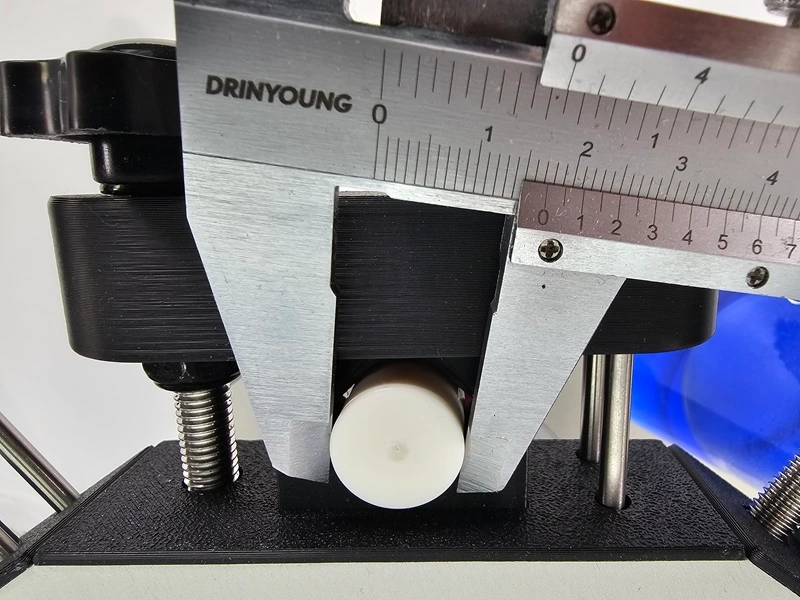

Caliper measuring minimum neck diameter at 17mm

Min. neck diameter — 17 mm

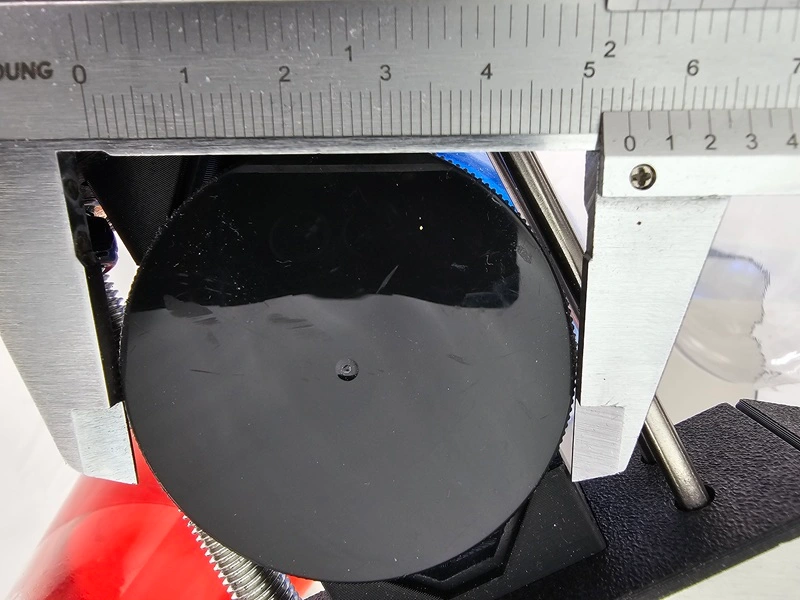

Caliper measuring maximum neck diameter at 55mm

Max. neck diameter — 55 mm

See it in action

Watch the shaker work

3D multi-axis motion, universal clamping, and real-lab performance — all in one platform.

Applications

Built for the lab bench

Designed to support a broad range of standard laboratory workflows without flask format limitations.

Cell culture Microbiology Sample mixing Staining protocols Washing protocols General lab workflows

In the box

What you receive

Shaker unit
Integrated universal clamp system (patent pending)
Power adapter

FAQ

Common questions

What flask sizes and types does it support?

The universal clamp system accepts any bottle or flask with a neck diameter of 17–55 mm (0.67–2.15 in). Both glass and plastic vessels are supported. This covers the vast majority of standard laboratory flasks — Erlenmeyer, round-bottom, culture bottles, and more.

How many flasks can it hold at once?

Up to 10 flasks simultaneously, depending on size and configuration. The platform accommodates a range of vessel formats without format-specific holders.

Can I adjust the shaking amplitude?

Yes. Z-axis amplitude is set mechanically before your run — adjustable from 0 to 80 mm of vertical travel. For active mixing, 5–80 mm is recommended. This is a one-time pre-run setup using standard tools, taking approximately 5–10 minutes.

Does it have a timer?

Yes — a timed mode with a ~30-minute default allows hands-free walk-away operation. Continuous mode is also available for longer runs. Both are controlled via front-panel buttons; no app or Bluetooth is required.

How loud is it?

Noise level is 60–70 dB at operating speed — comparable to a normal conversation. It is suitable for shared lab environments.

Is customization or licensing available?

Yes. As a direct-from-developer instrument, customization requests, technical discussions, and licensing inquiries are all welcome. Contact the developer directly.

Shipping & Returns

Simple, direct fulfillment

🇺🇸

Ships from USA

Fulfilled directly by the developer

📦

Free shipping

No additional shipping cost

↵

Returns accepted

Contact developer to arrange

Direct support & inquiries

Questions, customization requests, licensing discussions, and technical inquiries are all welcome. This is a direct-from-developer system.

Buy on Amazon Buy on Shakeum.com Buy on eBay

or get in touch directly

Patent Pending · Ships from USA · Free Shipping

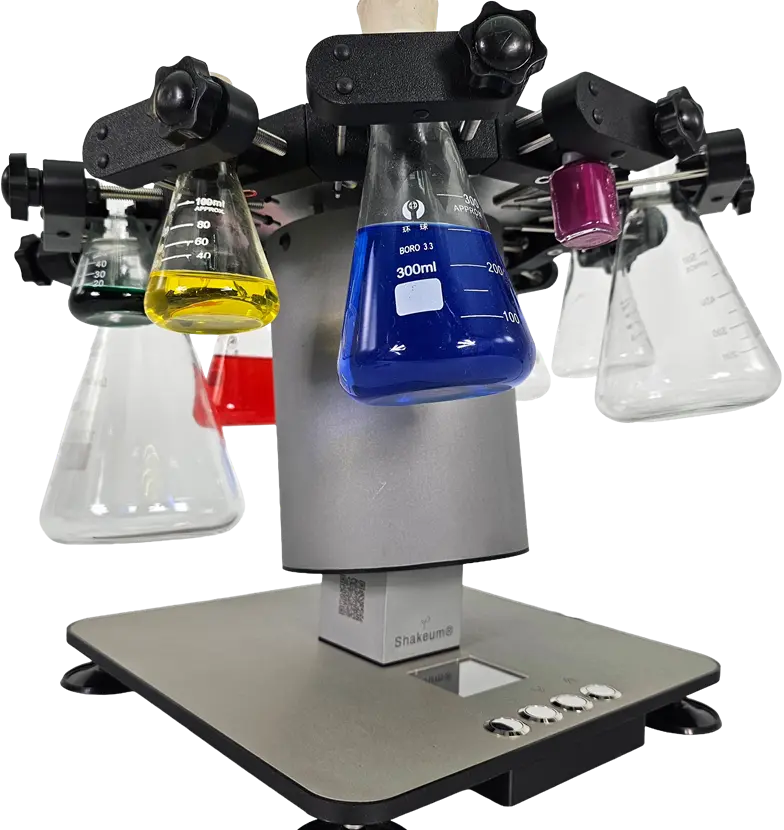

Shakeum laboratory shaker full unit view
